概述   Description

        氣流干燥機又稱瞬間、閃急干燥機，我國從60年代開始在制藥、化工等行業應用。我廠建廠伊始就引進國內外先進技術，為制藥化工、食品等行業提供優質氣流干燥設備。十多年來不斷改進提高發展以下三大系列氣流干燥機：QG系列、FG系列、GFF系列。

Air stream drying is also called insyantaneous drying.It is used in pharmaceutical industry, chemical industry from 1960 at home.Our factory follows up the advanced technology at abroad, produce series air stream dryer for home customer.The main products are divided into three series:QG,FG and GFF.

----------------------------------------------------------------------------------------------------------------

特點   Featrures

1、干燥強度大，設備投資省，蒸發水份能力，可從50kgH2O/h-2000kgH2O/h。

2、干燥時間短，適用于熱敏性物料，成品不與外界接觸，無污染，質量好。

3、設備成套提供，熱源可選擇蒸汽加熱或配套使用燃煤、燃油、燃?xì)鉄犸L(fēng)爐等。



1.Powerful drying, little invest and the amount of evaporated moisture is high(from 50kg/h to 2000kg/h).

2.The drying time is short. The series is suitable for stong heat sensitive materials. The finished product is separated from outside, and on pollution with high quality.

3.The equipment is a total set. The heat source can be choose from steam, coal fuel, oil fuel and gas fuel hot air furnace.



QG系列

        基本型氣流干燥設備，適用于松散狀、粘性小、成品為顆粒及粉末的物料。此流程示意為負壓氣流干燥，用戶可根據產品特性選擇正壓型式的干燥方法。

It is a kind base type, suitable for drying granule and adhesive property powder the sketch is negative stream drying, and you can choose positive stream drying.

----------------------------------------------------------------------------------------------------------------

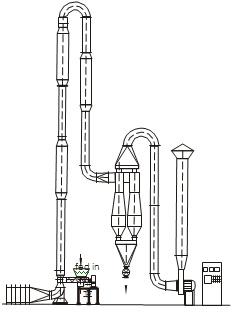

結構示意圖   Schematic of structure



----------------------------------------------------------------------------------------------------------------

技術參數   Technical parameters

型號spec	蒸發水份(kg/h) moisture to be evaporated	裝機功率 power	占地面積(㎡) occupied area	高度 Height
QG 50	50	6.25(8.28)	20	11
JG 50	50	9.25(11.25)	20	11
QG 100	100	8.6(11.6)	32	12
JG 100	100	16.1(19.1)	32	12
QG 250	250	20(27.5)	64	16
JG 250	250	31(38.5)	64	16
QG 500	500	48(58)	96	16
JG 500	500	48(58)	96	16
QG 1000	1000	63(78)	120	22
JG 1000	1000	78(98)	120	22

 注：部分參數設計時視不同物料有所調整，以設計為準。



GFF系列

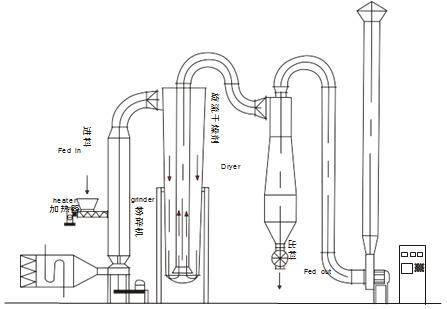

        設備帶強化粉碎裝置，具有產品終水份低、設備占地面積小、高度低等特點，適用于濾餅、膏狀、帶有一定粘性、要求成品為粉末狀的產品。

The series include force grinding equipment,and the mateials have less moisture, the installing area and the height is small, it is suitable for pulpiness, paste-like mixture or adhesive property powder materials.



----------------------------------------------------------------------------------------------------------------

技術參數   Technical parameters

型號 spec	蒸發水份(kg/h) moisture to be evaporated	功率配備 power	占地面積(m2) occupied area	熱功率(%) heat efficiency
GFF-300	25	7.5	4×4	5.5
GFF-400	50	11	4×6.5	6.5
GFF-500	75	13	4×7	7.5
GFF-600	100	17	5×6	8.0
GFF-800	200	29	5×9	9.0



FG系列

    具有尾氣循環使用比一般氣流干燥機節能30％的優點，適用于無粘性、松散狀物料，成品為顆粒及粉末。

The out air is circulation and save 30％power.It is suitable for no adhesive property,disorder materials,and finished product is graphite and powder.

----------------------------------------------------------------------------------------------------------------

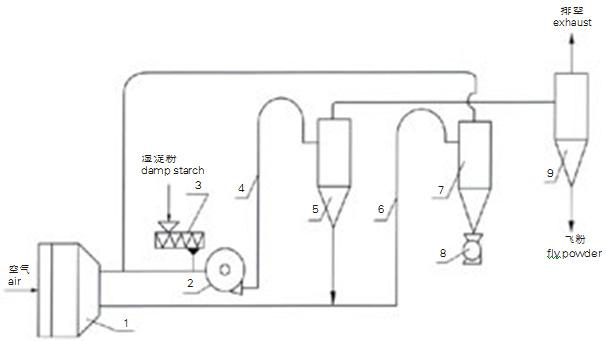

結構示意圖   Schematic of structure



----------------------------------------------------------------------------------------------------------------

技術參數   Technical parameters

型號 spec	蒸發水份(kg/h) moisture to be evaporated	功率配備 power	占地面積(m2) occupied area	熱功率(%) heat efficiency
FG0.25	113	11	3.5×2.5	>80
FG0.5	225	18.5	7×5	>80
FG0.9	450	30	7×6.5	>80
FG1.5	675	55	8×7	>80
FG2.0	900	75	11×7	>80
FG2.5	1125	90	12×8	>80
FG3.5	1491	110	14×10	>80
